Strobe light with Marker Light / Halo

Strobe light with Marker Light / Halo

One light two functions!

Part of our Multifunction range this small discrete surface mount light certainly packs a punch!

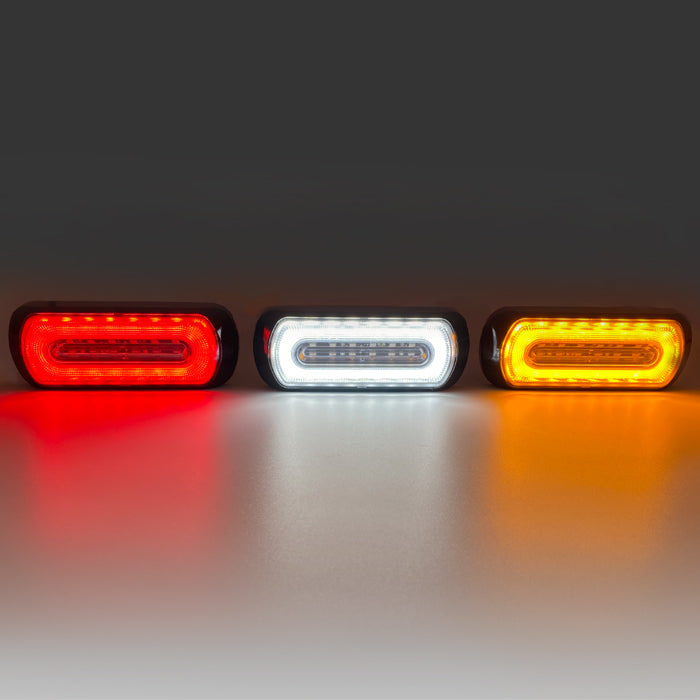

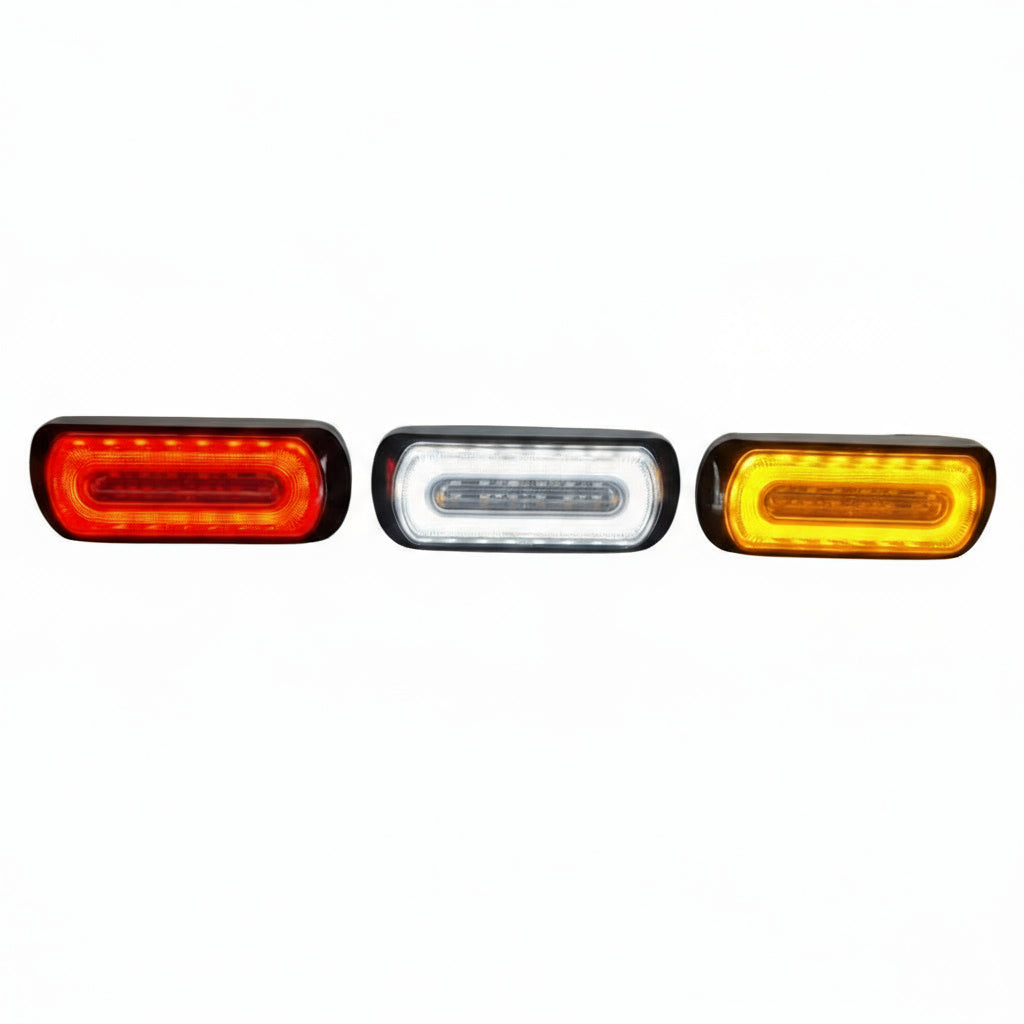

Halo colours available - Red, Green, Amber, White or Blue

Strobe Colour - Amber

Suitable for a variety of uses including; marker lights, grill lights or just to make you stand out from the crowd!



Multi Voltage input 12-24VDC.
Lens colour: Clear.
Housing colour: Black.
Fuse rating: 2A.
LED: 6x Centre Strobe Warning LED's, 18x Halo Ring Marker LED's.
Max Current: 1.35A@12VDC / 0.75A@24VDC.
Max Wattage: 18W.
Mount: Horizontal / Vertical
21 Flash Patterns.
Sync up to 14 lights in 2 separate groups.
Wire: Red - Positive (High intensity strobe light).
          Black - Negative.
          Yellow - Flash pattern selection & sync (apply to black for next flash pattern).
          Grey - Positive (Marker Halo Ring)
         White - Low intensity strobe light.


FEATURES:
Up to 100,000 hours rated Long-Life LED.
Independent control for strobe and marker light (separate power cables).
Built in selectable flash patterns.
Memory recall for last flash pattern used at power up.
Weatherproof and vibration resistant.
Aluminium base for excellent heat dissipation.
Reverse polarity protection.
UV resistant lens.
Warranty: 3 Year.

APPROVALS:
ECE EMC R10, ECE R65 Class 1, ECE R148 (R6/R7/R23), E-Marked, CE, UKCA,  IP67 / IP69K, CISPR 25 Class 3, SAE J595 Class 1.

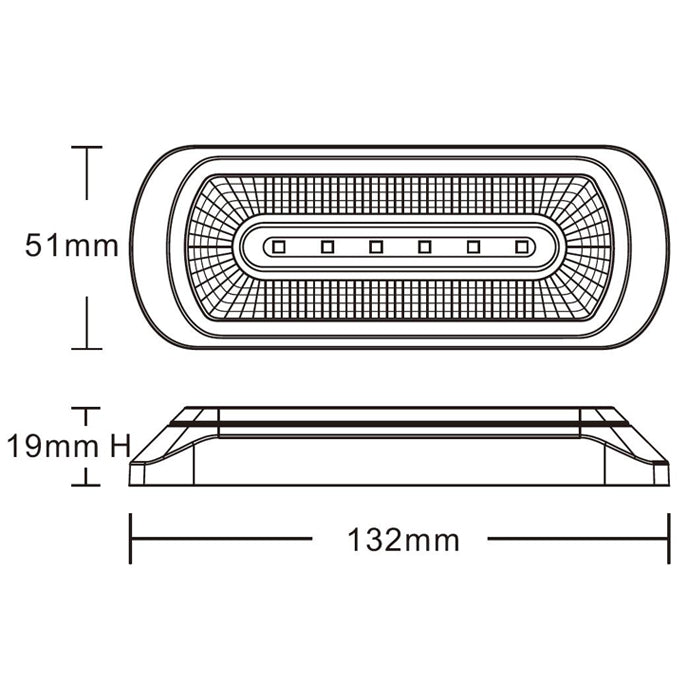

DIMENSIONS:
W:132mm x H:51mm x D:19mm.
Mounting hole centres: 120mm



This product is on display at our A30 Installation Centre in Scorrier - but, be warned...bring your sunglasses we have a dazzling display of vehicle lighting!
