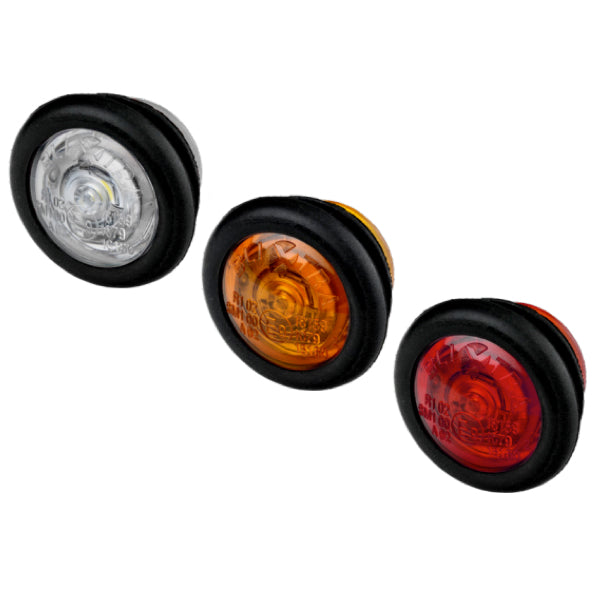

Mini Marker Lights

Product Overview

The LAP CV218 Mini Marker Lights deliver high-end performance in a compact form-factor — ideal for modern commercial vehicles where space is at a premium but visibility, compliance and durability remain non-negotiable.

Key Features

• Fully ECE-approved LED marker light range (front white, side amber, rear red) ensuring legal compliance for commercial transport.
• EMC-approved to ECE R10, providing electromagnetic compatibility in high-demand vehicle environments.
• Multi-voltage operation (10-30 V) for compatibility across 12 V and 24 V vehicle systems.
• Compact physical dimensions: approximately 90 mm × 25 mm × 16 mm, allowing for discreet mounting while fulfilling marker light functions.
• Robust ingress protection rated IP67, safeguarding units from dust and water ingress.
• Supplied with 300 mm cable length for versatile installation.
• Backed by a 2-year manufacturer warranty for added confidence in product reliability.

Why Choose the CV218?

• Space-saving design: At just 25 mm wide and low profile, the CV218 is perfect for slim-mounting on trailers, truck bodies, enclosures or delineation applications where larger lights may be obtrusive.
• Full vehicle suite: With variants for front (white), side (amber) and rear (red) applications, you can standardise on one product family for all marker-light positions.
• Heavy-duty credentials: With IP67 protection and ECE approvals, these lights are engineered for demanding operational environments including commercial haulage, trailers, refrigerated units and body-builders.
• Future-proof voltage compatibility: Works across 10-30 V — suitable for 12 V and 24 V systems without separate part-numbers.
• Quality-driven manufacturing: Made by LAP Electrical Limited (UK) which holds key automotive and ISO accreditation.

Applications

• Commercial vehicle marker lighting: trucks, trailers, vans, box-vehicles
• Body-builder installation: side delineation, front outline, rear outline marker
• Retrofit or new build where low-profile marker lighting is required
• Situations requiring robust ingress protection (wet roads, exterior body mounts)
• Multi-voltage fleets (12 V and 24 V) seeking a unified lighting platform

Technical & Ordering Information

Dimensions: ~90 mm (L) × 25 mm (W) × 16 mm (D)
Cable Length: 300 mm
Voltage Range: 10–30 V DC
Ingress Protection: IP67
Warranty: 2-year
Colours & Positions:

• White – front position (CV218-W)
• Amber – side position (CV218-A)
• Red – rear position (CV218-R)

Approvals: ECE marker approval, EMC approval (ECE R10)
